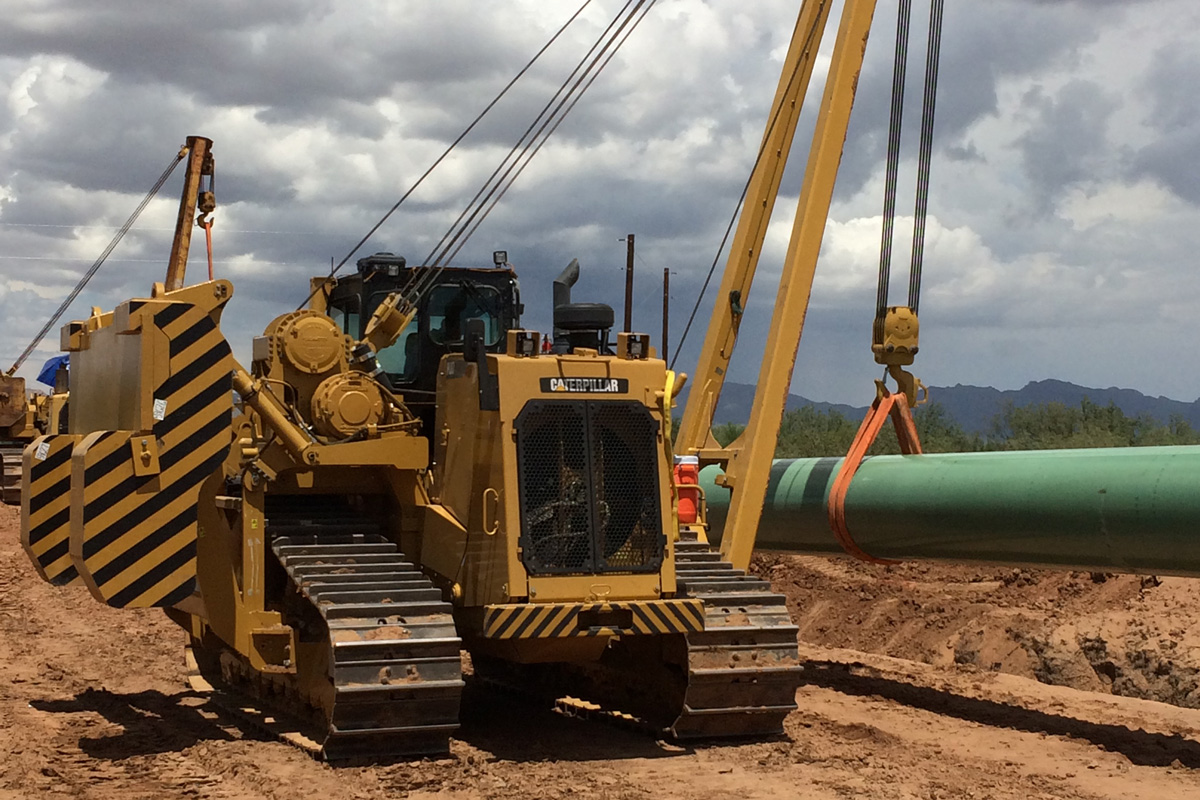

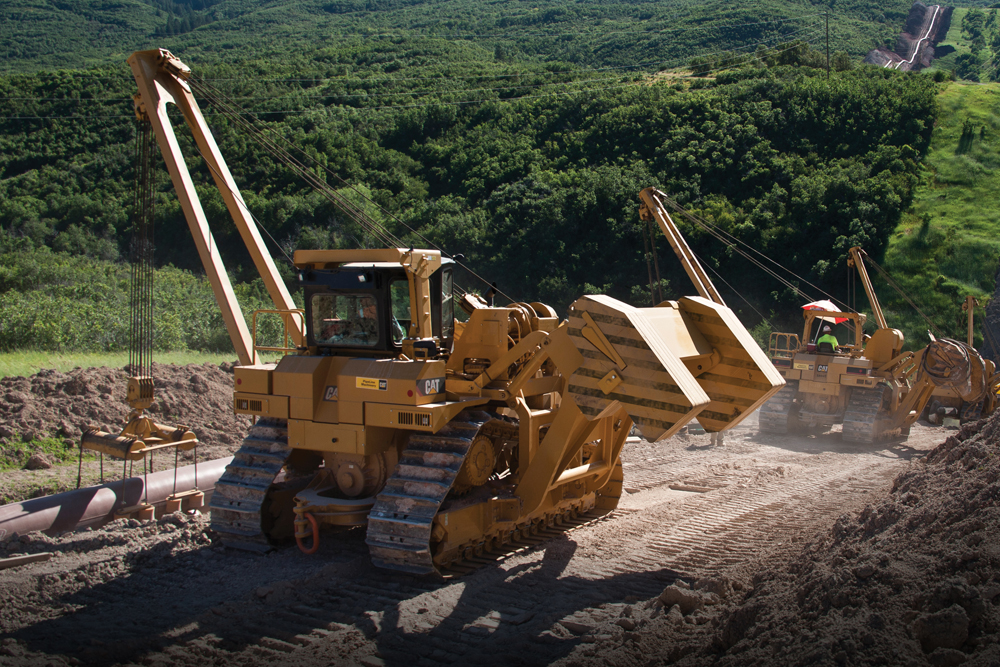

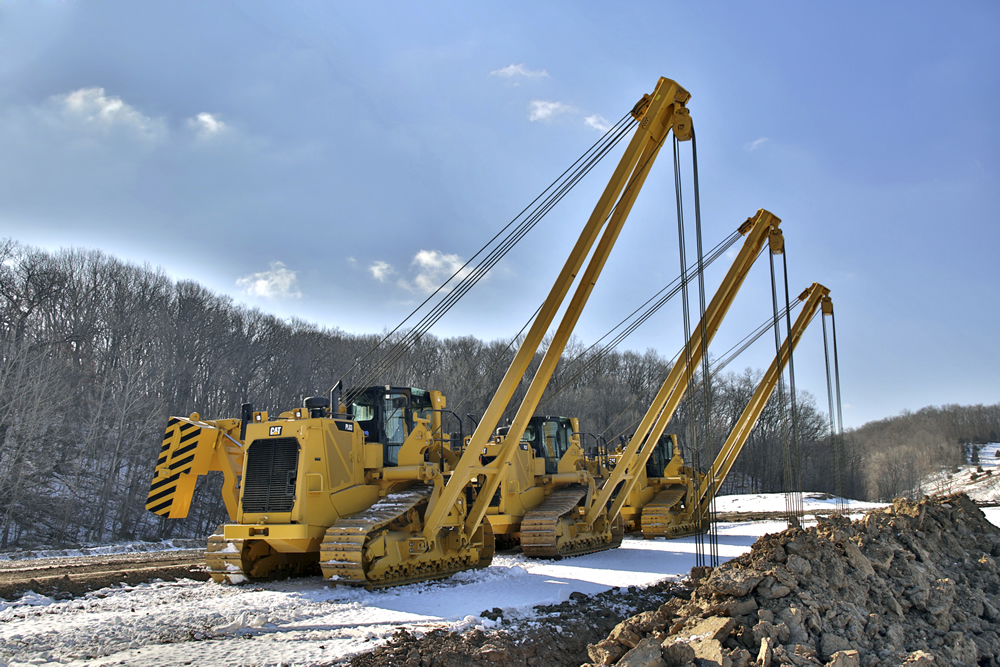

PL87 Pipelayer Sideboom Pipeline Construction Equipment

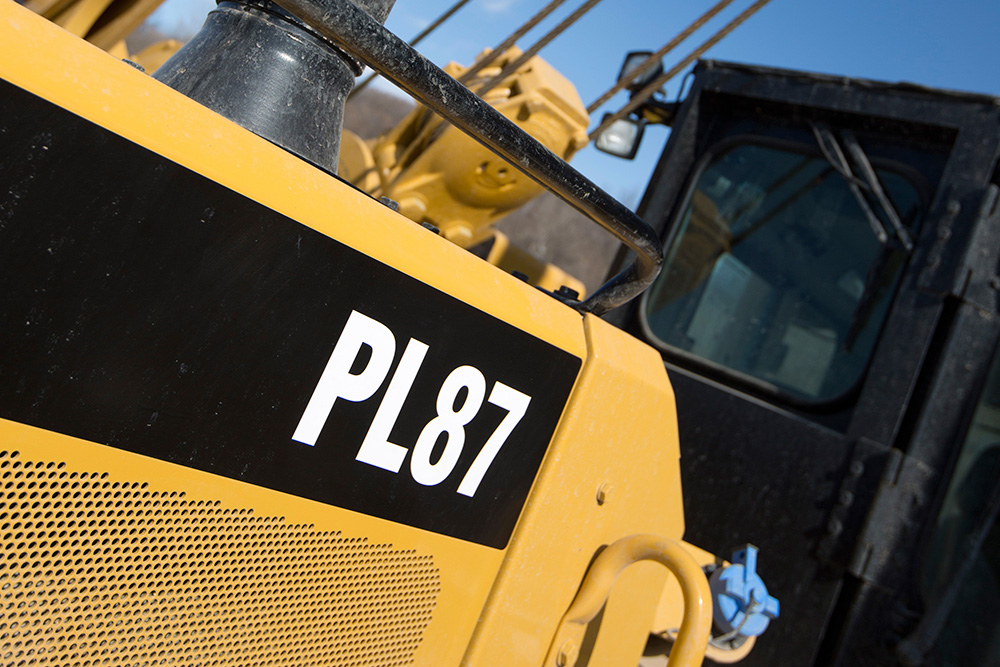

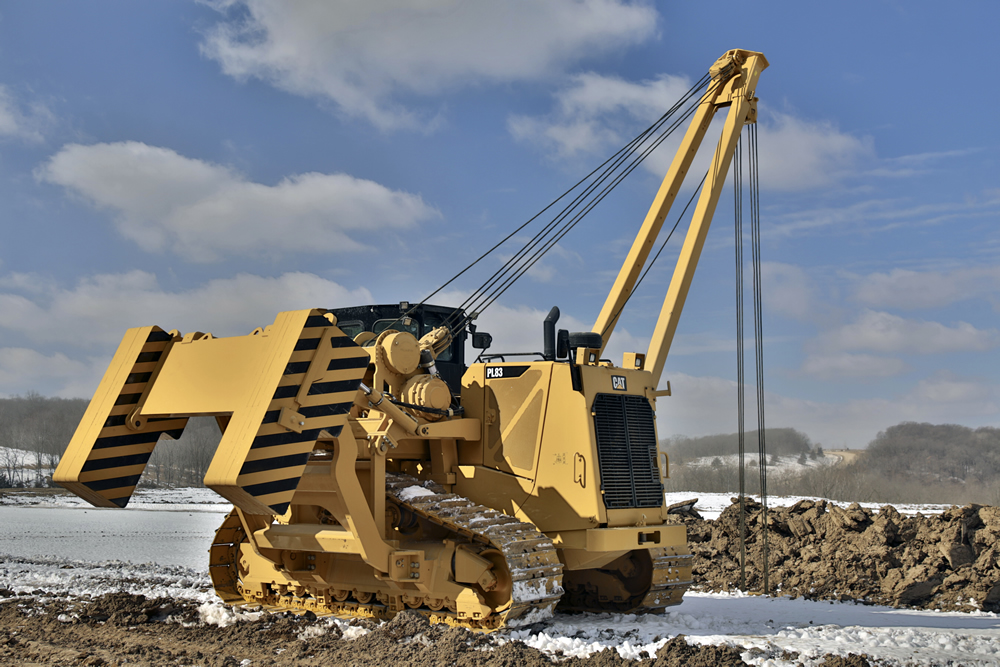

Cat PL87 Pipelayer

ENGINE POWER - NET OPERATING WEIGHT LIFT CAPACITY
Cat C15 319 hp / 238 kW 121,795 lb. / 55 246 kg 216,000 lb. / 97 976 kg

DESIGNED FOR HEAVY LIFTING.

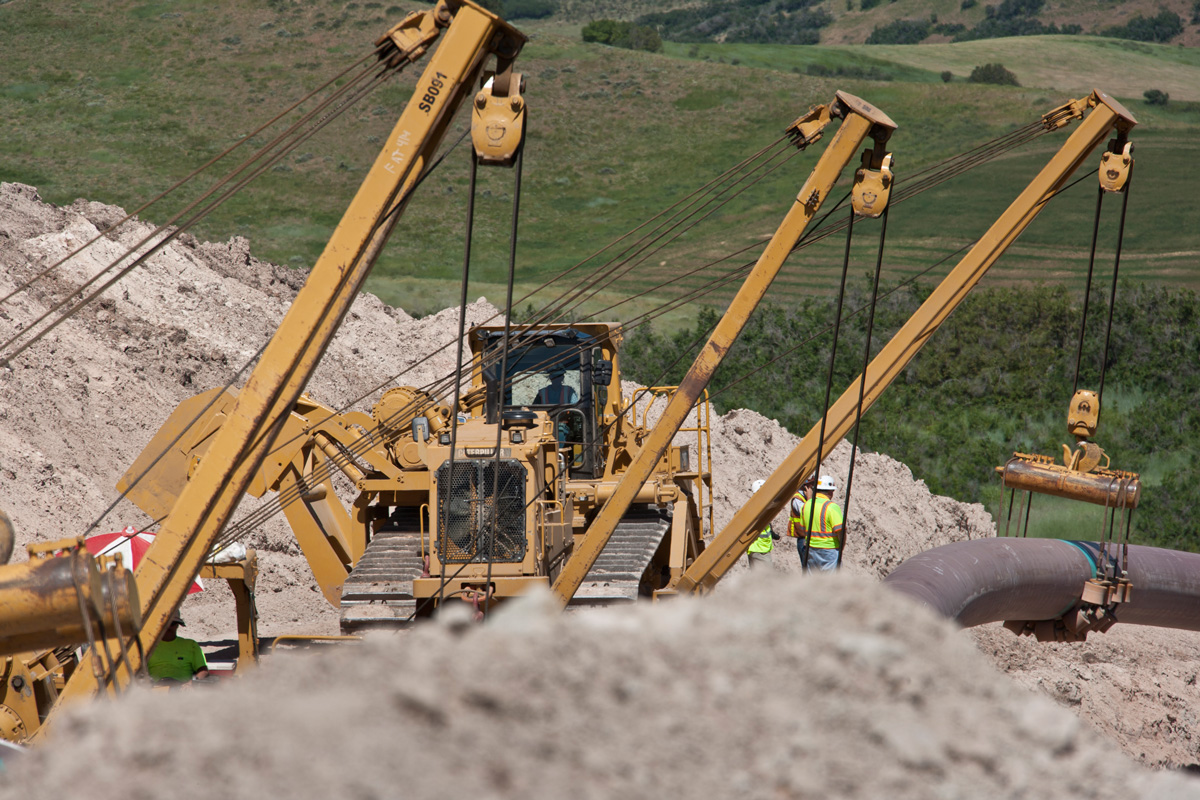

The Cat^® PL87 pipelayer / sideboom is designed for large pipe diameter work and heavy lifting with a variety of features that are purpose-built for increased lift capacity, enhanced slope capability, side-to-side stability, ease of operation and reliable performance. Built from the ground up with a pipeliner’s job tasks in mind, the PL87 pipelayer takes on the unique demands of pipeline applications so that you can go to work safely and efficiently.

The PL83 and PL87 pipelayers and sidebooms are built on the same platform for ease of use and consistency. The PL series pipelayers and sidebooms are made up of 100% Caterpillar components with quality parts and product support anywhere in the world. This is our commitment to you. As your partner, PLM can help you plan for a successful project by answering any questions you might have, make recommendations specific to your pipeline project and help you streamline the process. Contact us today or speak with your Account Manager to get started.

Product Downloads

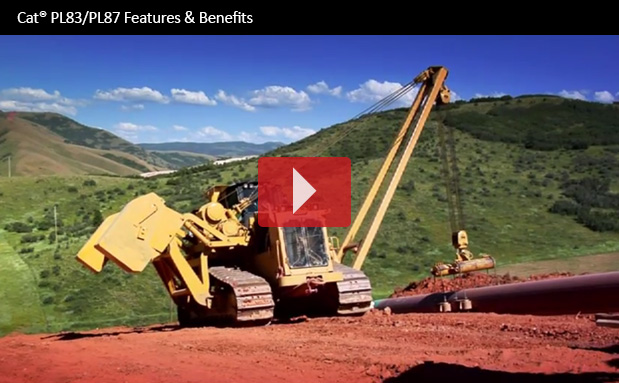

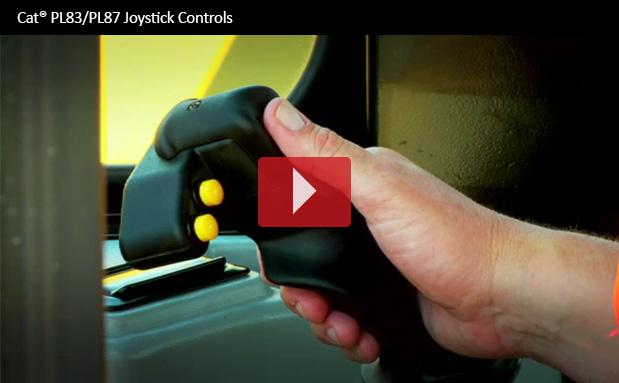

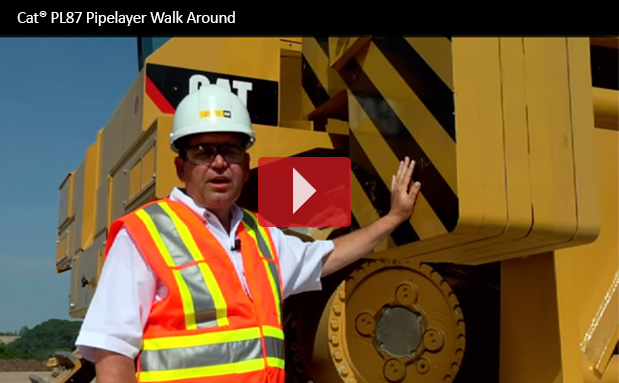

Video Library

Features & Information

Emissions Technology. The PL87 pipelayer meets the U.S. EPA Tier 4 Final / EU Stage V / Korea Tier 4 final emissions standards. Caterpillar engineers added Selective Catalytic Reduction (SCR) to the already proven aftertreatment to achieve an 80% reduction in NO_x emissions. The technology is designed to regenerate automatically in the background while you work.

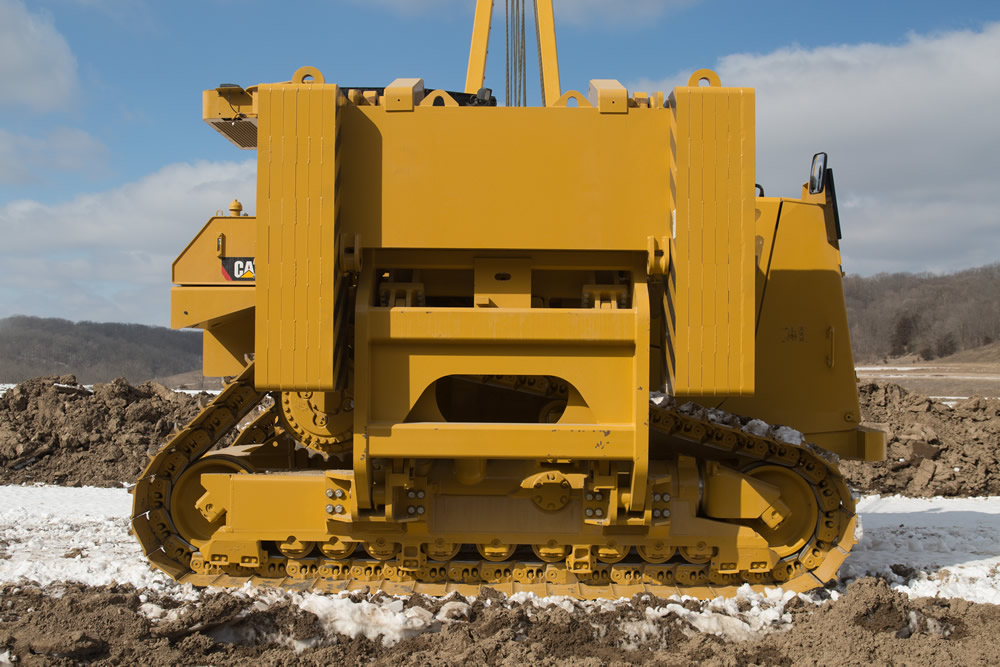

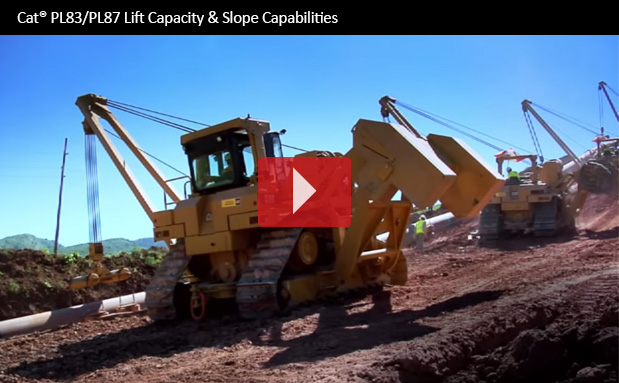

Slope Capability. Lengthened track-roller-frame and re-positioned rear idler puts more track on the ground, addressing the weight shift when traveling uphill and enhancing slope capability. The heavy-duty undercarriage is designed to be wider than similarly sized dozers, which stabilizes the machine and putts more track on the ground.

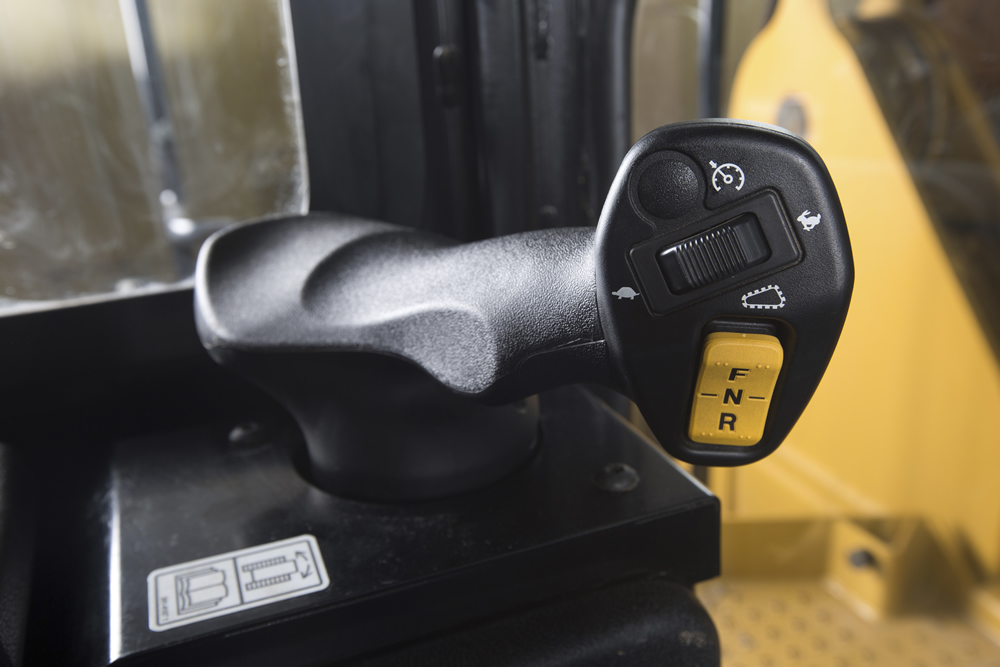

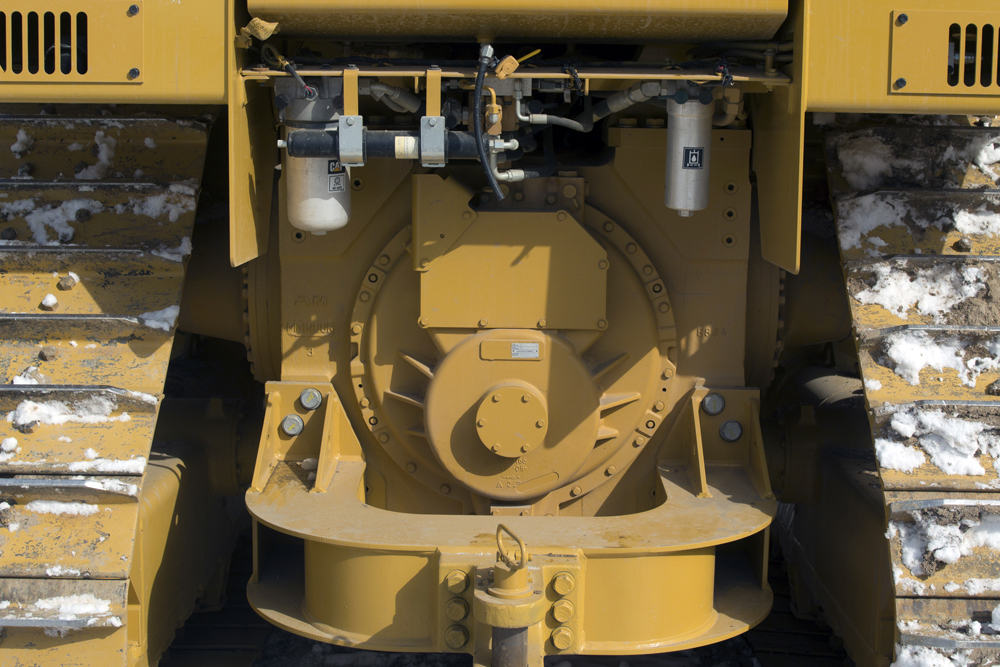

Performance. State-of-the-art drawworks on this dedicated pipelayer are pilot operated and closed loop hydrostatic. The proper amount of pressure is maintained so that when you ask the machine to go to work, it goes to work. There are no cables or linkages to adjust and it does not require daily maintenance. This pipelayer is also built with a power train matched to pipelayer applications.

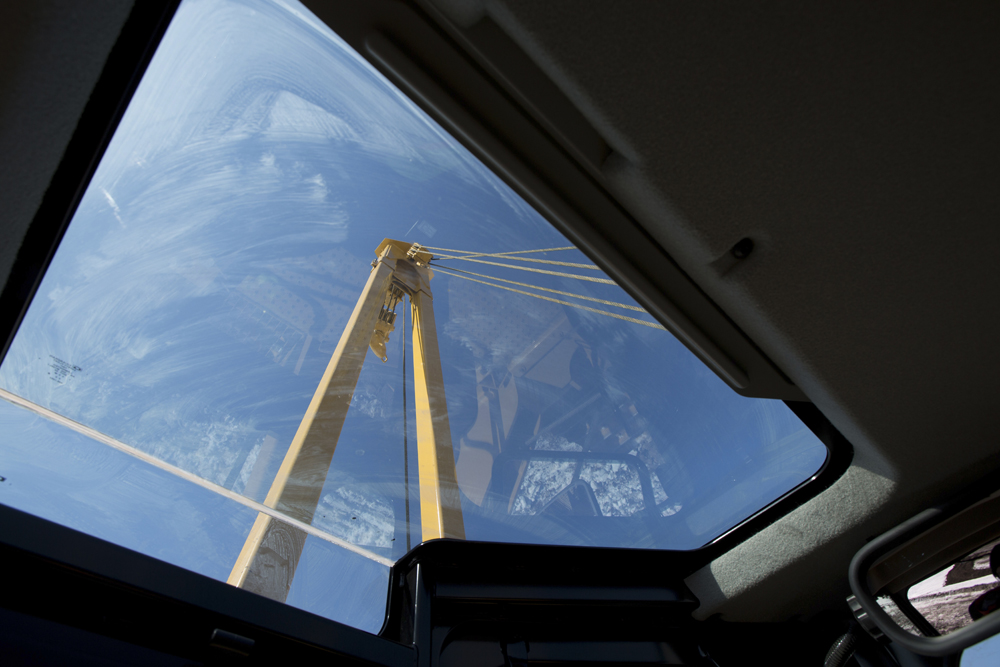

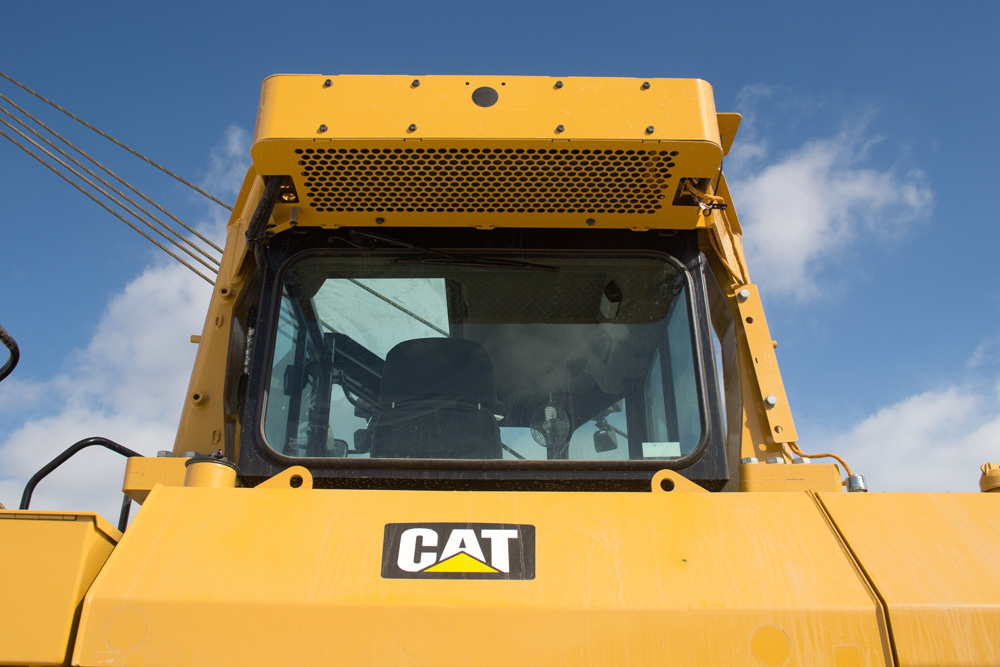

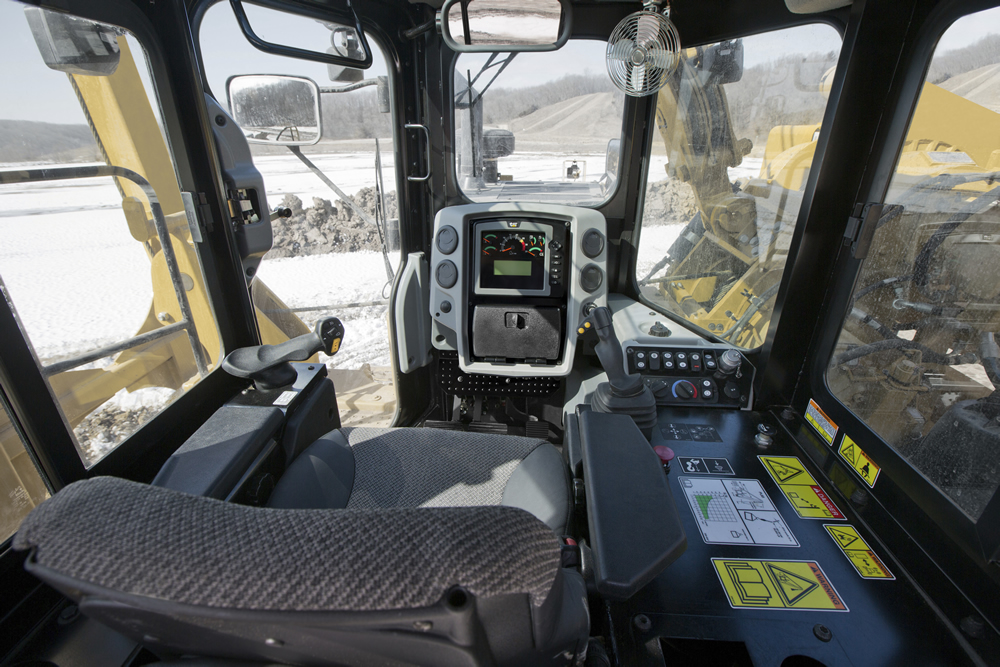

Safety. Standard Roll Over Protection Structures (ROPS) that is rated for the Gross Machine Weight of the pipelayer. A Cranesmart Load Monitoring Indicator (LMI) is standard on all new PL series pipelayers to wirelessly feed the operator accurate load information. Additional large surface mirrors enhance visibility for the operator, and a modified block set design reduces the profile for greater visibility to the pipe.
You talk. We listen. Updates made to the PL87 pipelayer based on customer feedback include: a load line block holder to improve rope life, boom lifting eyes to assist with handling and maneuverability during boom installation, and a counterweight rod holder for safe transportation. These improvements are made at factory level in 2021 and can be added to your current fleet on request.
New boom length available. The addition of the 6.1m (20ft) Boom option to the PL83 and PL87 is to improve safety on steep slopes and in residential applications.

Download the product brochure from this page to see additional features.

Image Gallery

In addition to a complete line of Caterpillar pipelayers, sidebooms, track-type tractors (dozers), excavators and motor graders, PLM is the exclusive distributor of Vanguard Continuously Powered Welding tractors, Wet Decks (hydraulic conversion kits for Caterpillar pipelayers) and Combo tractors (pipelayer attachments on D6 Caterpillar tractors). For more information, please contact your PLM account manager or click here to contact us.
