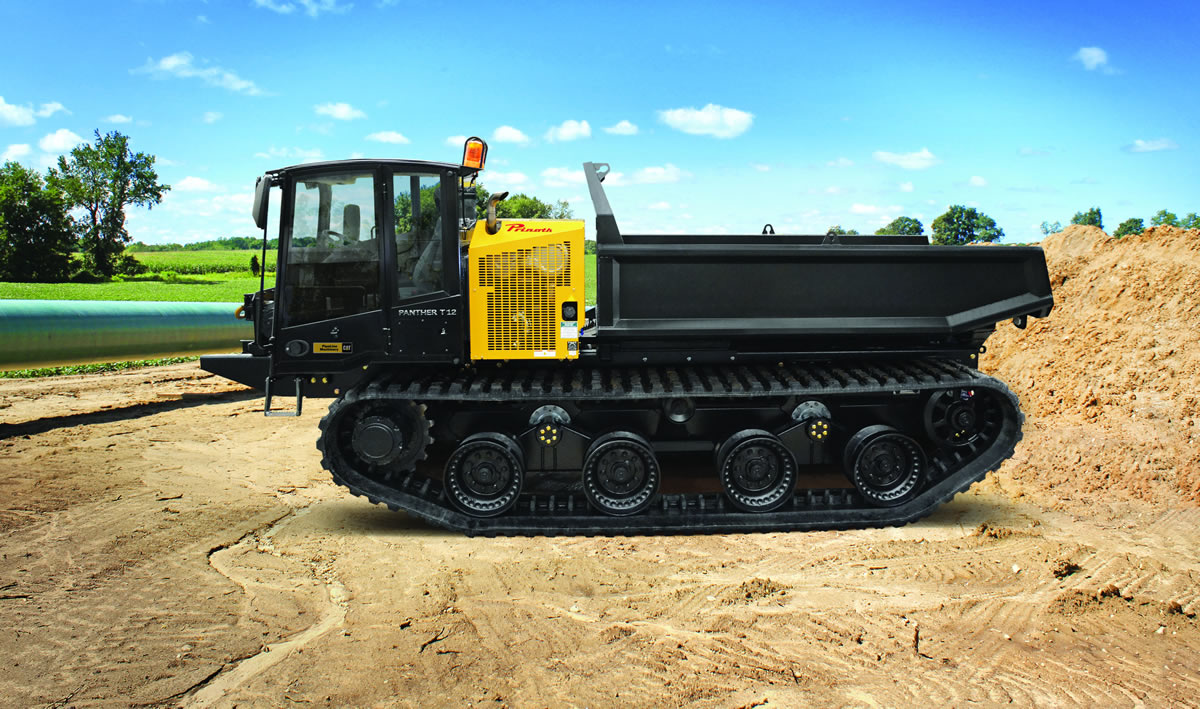

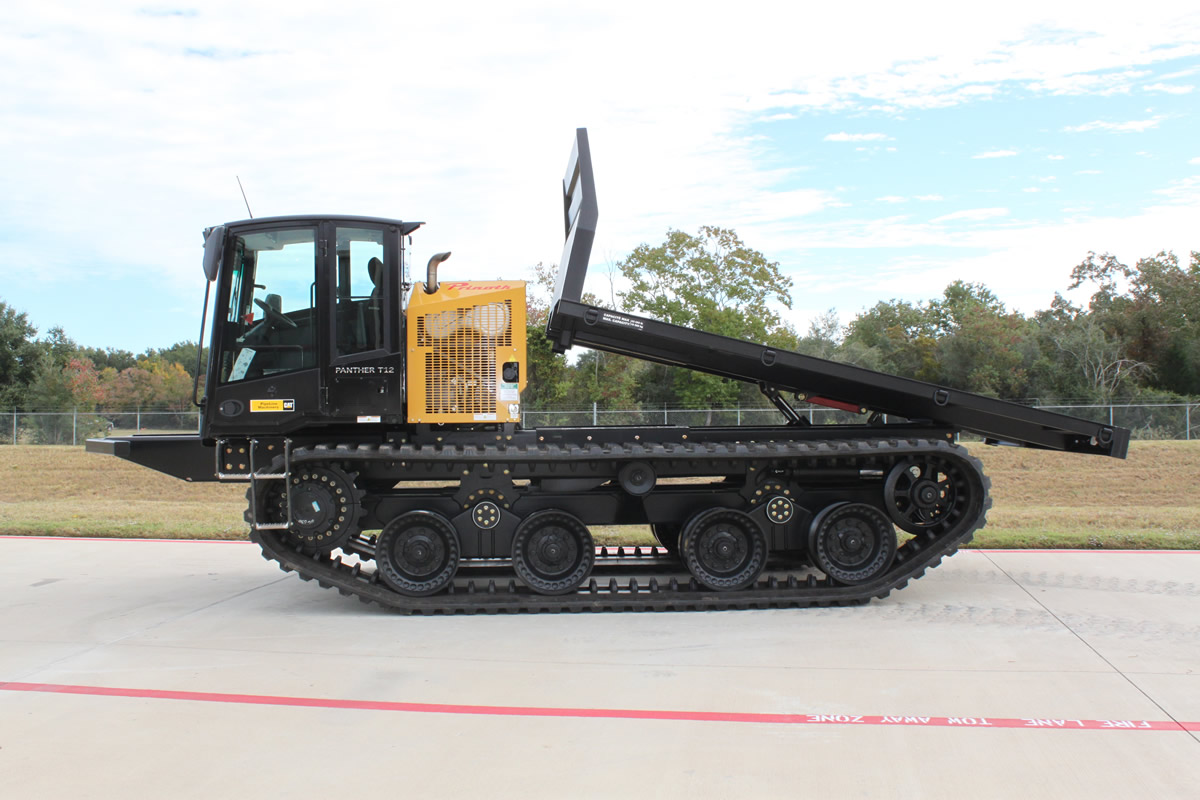

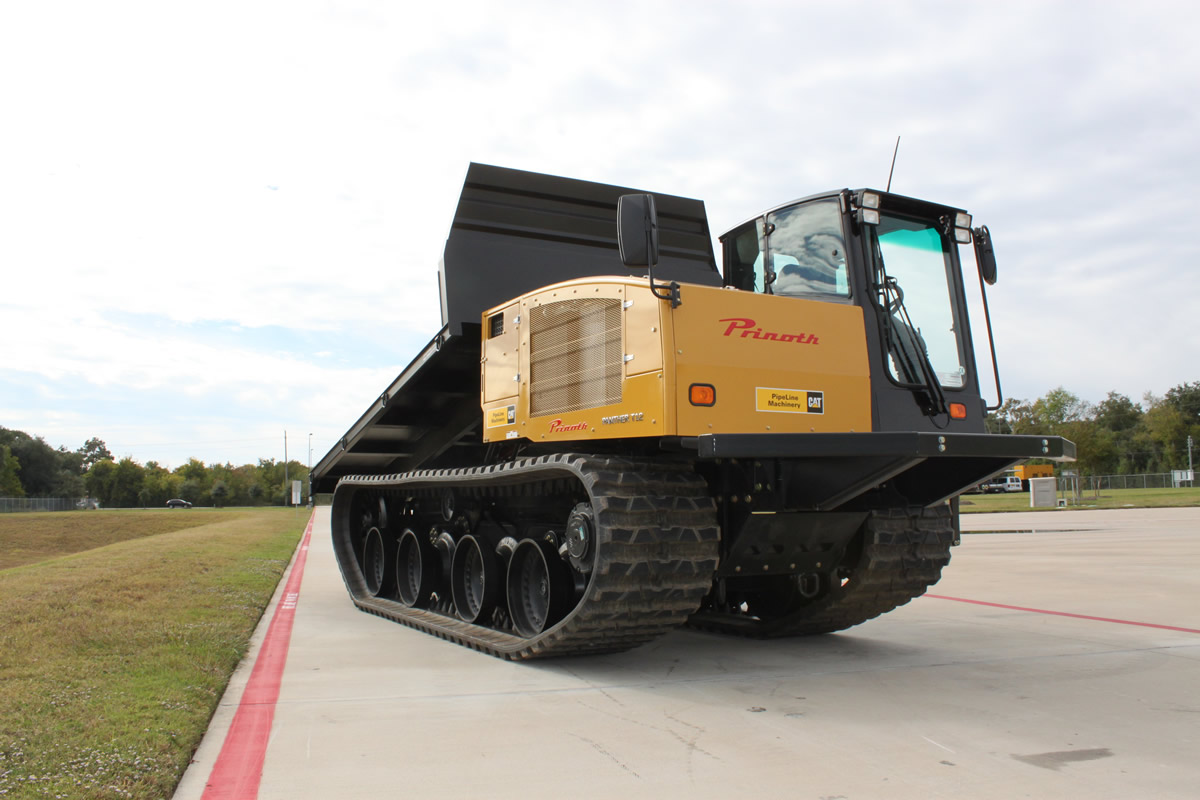

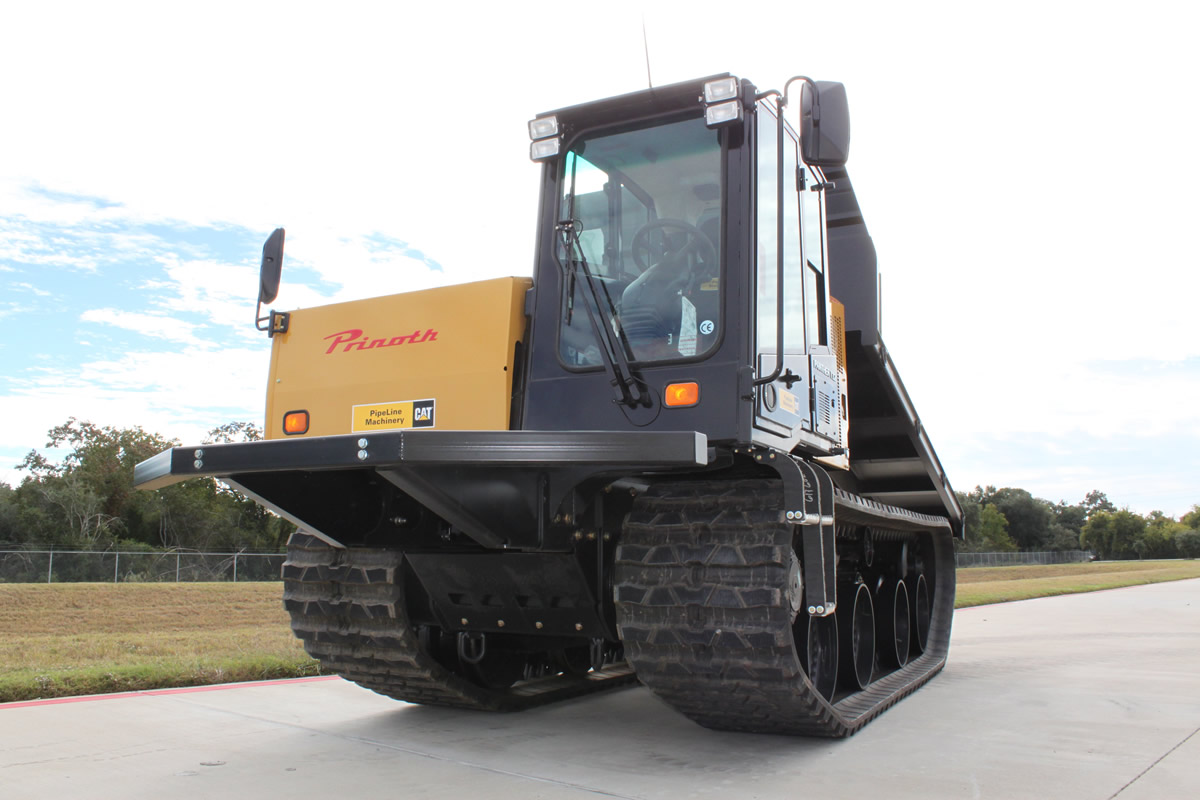

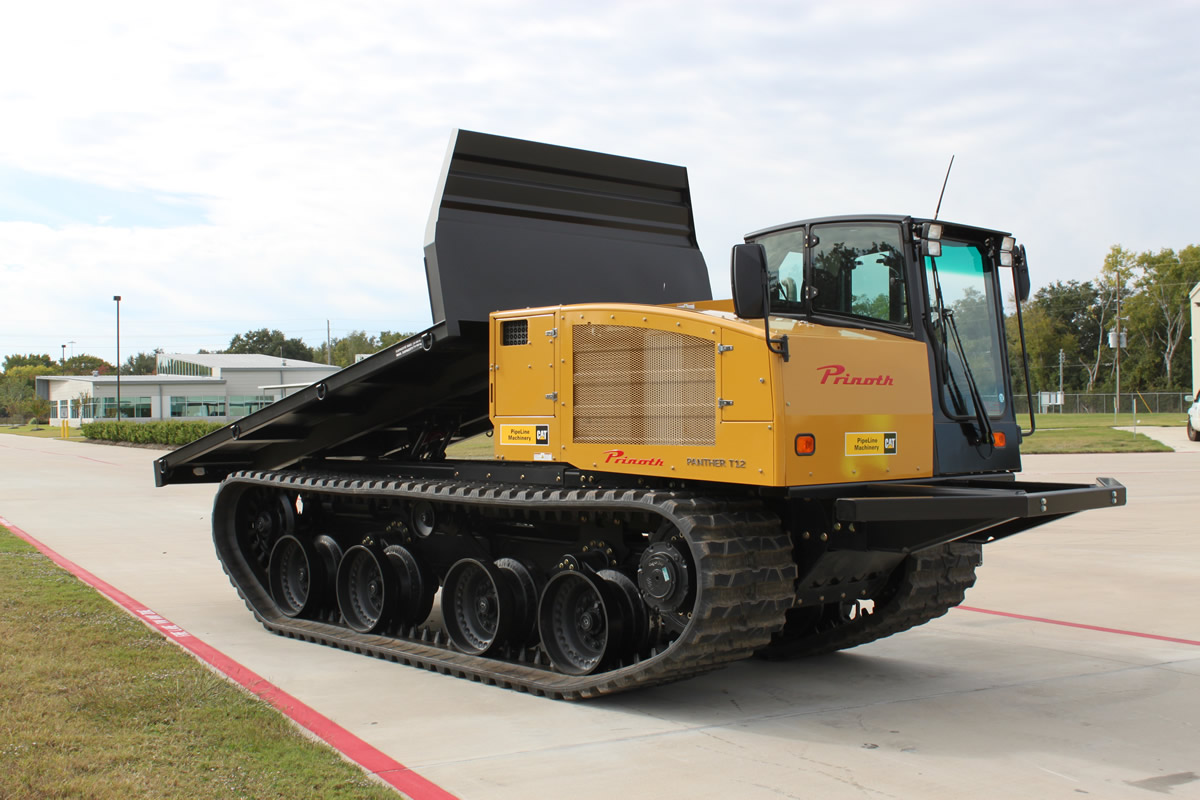

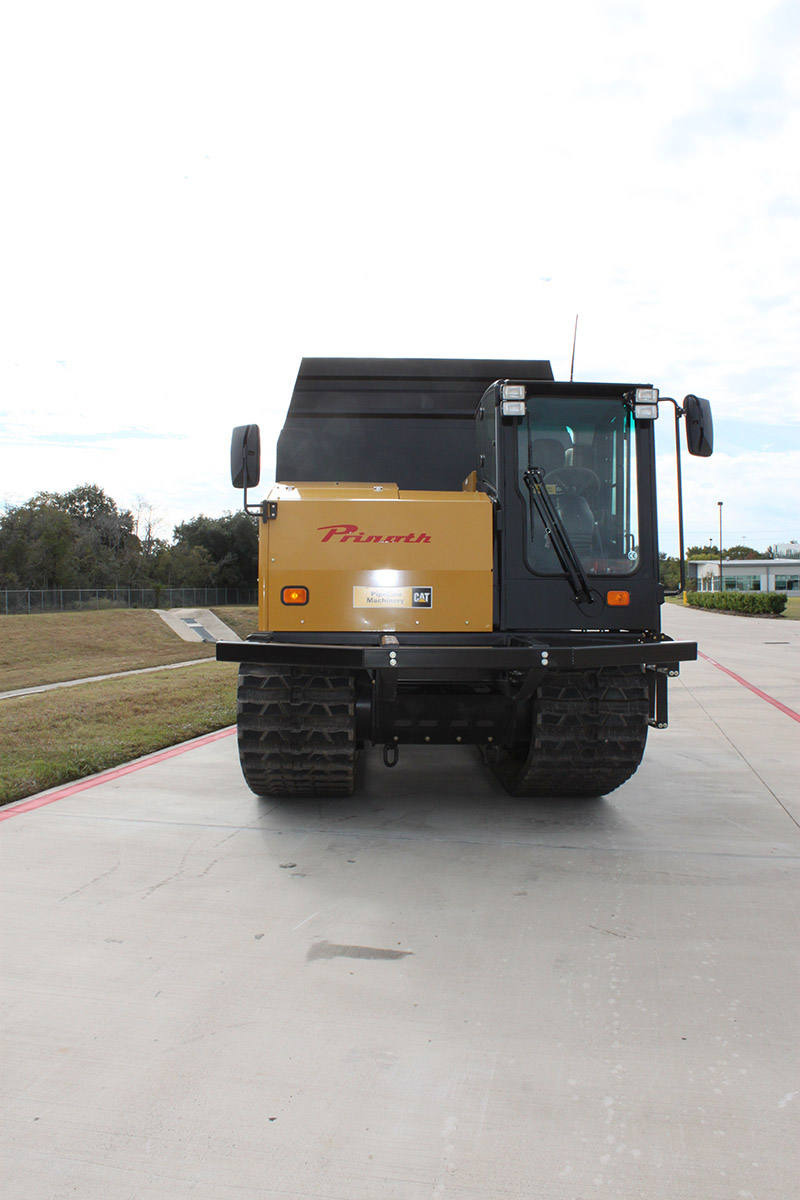

PANTHER T12 Carrier

ENGINE                      ENGINE POWER       GROUND PRESSURE             PAYLOAD
                                                                                 LOADED

Cat® 7.1 ACERT™      250 hp/186 kW          5.91 psi (415 g/cm2)          25,000 lb./11 340 kg

STRONG PULL RATIO FOR LARGE LOADS.

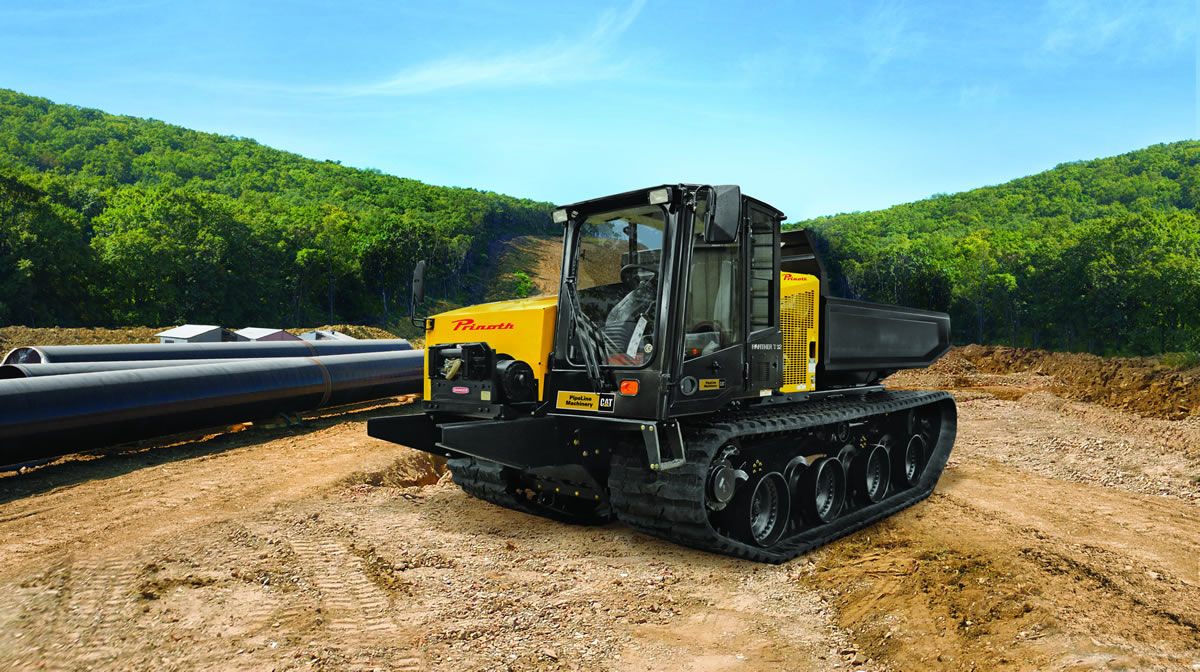

The PANTHER T12 rubber track crawler carrier navigates difficult terrain and effortlessly carries up to 25,000 lb. (11 340 kg) worth of heavy equipment, job materials and supplies down the right-of-way while exerting very low ground pressure.

Built with a widened chassis to accept virtually all implements without any modifications, PLM makes the PANTHER T12 available in these configurations; flat bed with crane, tilting flat bed and the auto tie-in crane application for welding operations.  PLM can help you plan for a successful project by answering any questions you might have, make recommendations specific to your pipeline project and help you streamline the process.  Contact us today or speak with your Account Manager to get started.

Features & Information

  • Emissions Technology.  The Cat C7.1 ACERT engine meets EPA Tier 4 Final/ EU Stage IV emission standards.

  • Performance.  The PANTHER T12 features an uphill & downhill gradeability of 60% (31º), sidehill gradeability of 40% (21.8º), and a maximum speed of 6.2 mph (10 km/h).  Pavement-friendly rubber tracks and remarkable speed make the PANTHER highly mobile.  Numerous blocks provide bite into the ground while angular cuts and “zig-zag” tread provide side-hill grip.  Dynamic track tension gives you proper tension while working.  Large wheels give more contact with the ground and more stability.

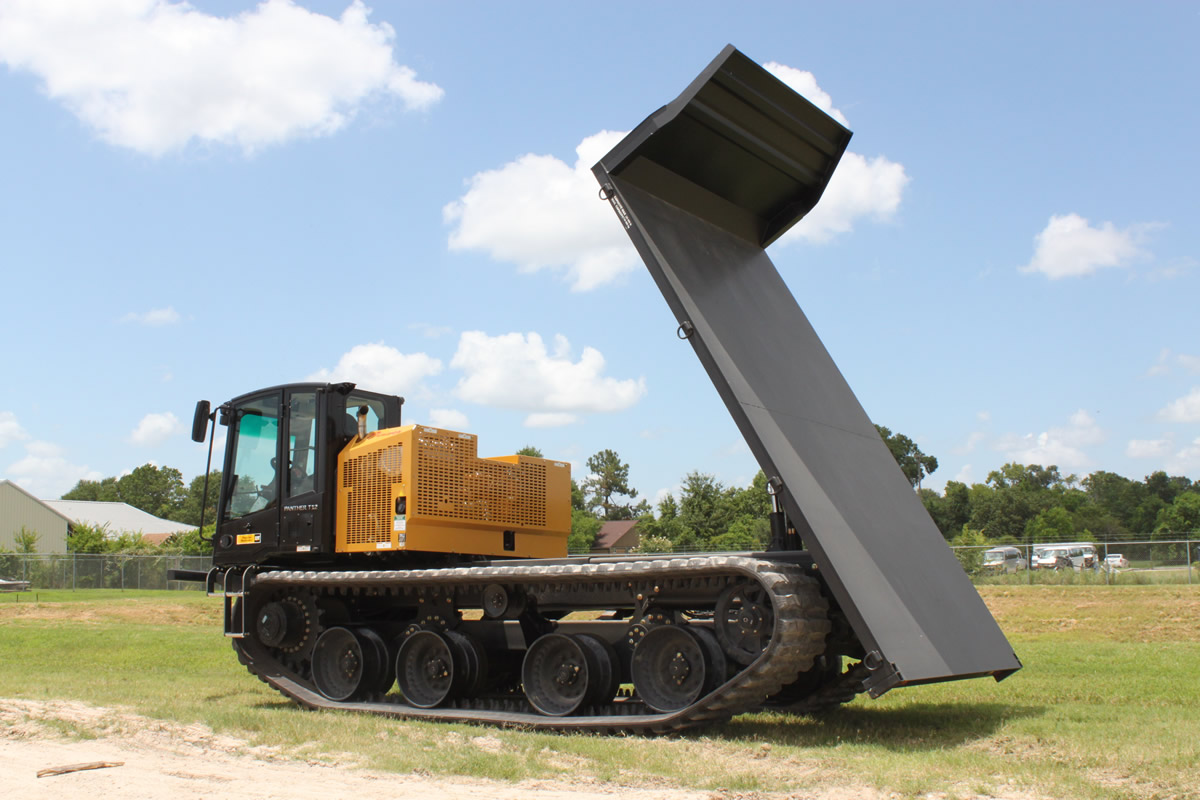

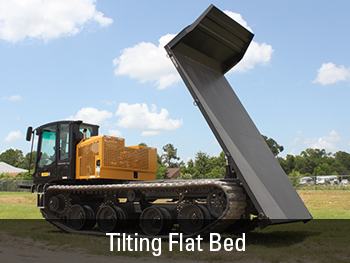

  • Versatility and more.  PLM makes the PANTHER T12 available in four configurations: flat bed with crane, a tilting flat bed, a dump box, and the WELD DECK with auto tie-in crane.  See additional information below.  Together with a ground pressure of 5.91 psi and a strong pull ratio, these features allow this carrier crawler to access your pipeline construction site, even if the terrain is difficult, without damage to the environment.

    Download the product specifications from this page to see additional features and information.

PANTHER T12 Configurations

  • Crane model: Atlas 57.3 A2L with remote control and battery charger.
  • Knuckle boom, telescopic reach with a swivel range of 390 degrees.
  • Capacity:
    • 3,218 lb. @  12 ft.  (1460 kg @ 3.7 m)
    • 1,609 lb. @ 23 ft. (730 kg @ 7 m)
  • Optional removable aluminum sides on the flat bed.
  • Note: PANTHER T8 shown here.

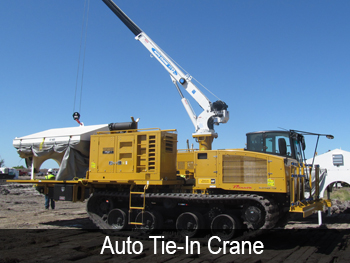

Auto Tie-In
  • WELD DECK continuous powered welding package.
  • Auto Crane straight-type crane lifts maximum of 12,000 lb. at a distance of 4 ft. and a slewing radius of 370 degrees.
  • Additional deck space at rear of machine to store welding half-shack between tie-in sites.
  • Additional safety features include large, adjustable obstruction mirror, front mounted bottle rack and an egress ladder for easy access to the WELD DECK.

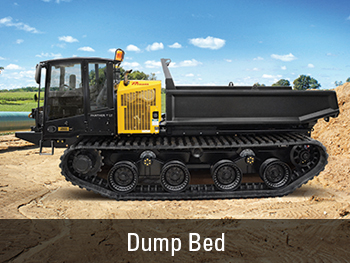

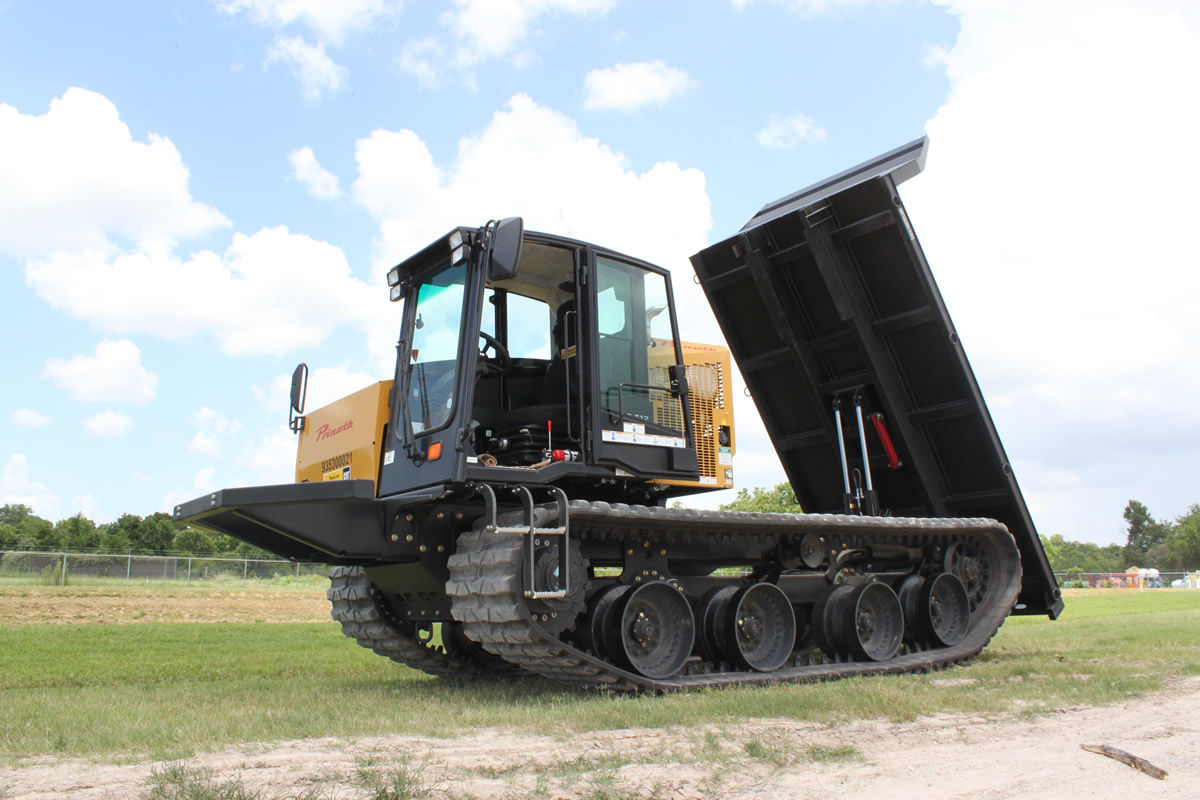

  • Capacity of 7.65 cubic yards (5.85 cubic meters) and 23,000 lb. (10,432 kg)
  • Capacity of 23,000 lb. (10,432 kg)
  • Deck space is 101 in (2569 mm) wide and 171.5 in (4356 mm) long


In addition to a complete line of Caterpillar pipelayers, sidebooms, track-type tractors (dozers)excavators and motor graders, PLM is the exclusive distributor of Vanguard Continuously Powered Welding tractors, Wet Decks (hydraulic conversion kits for Caterpillar pipelayers) and Combo tractors (pipelayer attachments on D6 Caterpillar tractors). For more information, please contact your PLM account manager or click here to contact us.
